Automatic single face 2 ply corrugated cardboard carton paper box production line
If you need customized carton machinery, Contact US !
Products Category
Tag list
- 产品描述
-

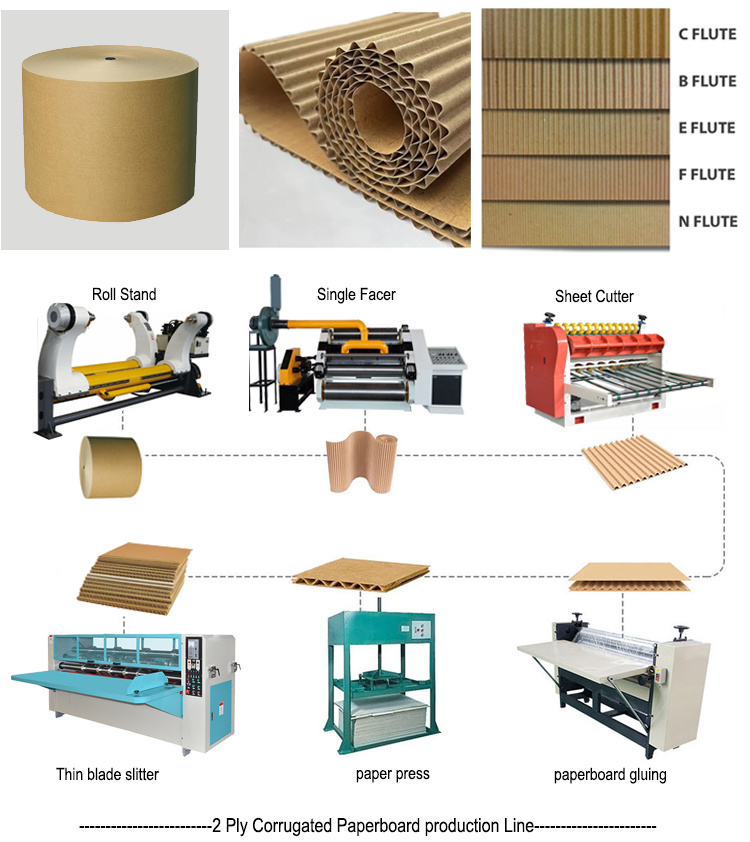

1.This line consists of three machines, single facer amchine ,mill roll stand and sheet cutting off machine .
2.Low price, economical and practical, high cost performance.
3.The maximum speed is 80m / min.
4.The heating mode is optional, including electric heating, steam and heat oil.
5.This line can make 2 layers of corrugated board. Add a manual pasting machine ,it can making 3/5/7layers corrugated cardboard .
Product paramenters
Model DW-1400 DW-1600 DW-1800 Working width(mm) 1400 1600 1800 Max design speed (m/min) 100 100 100 Way of heating electric/steam electric/steam electric/steam Type of corrugated flute A,C,B,E,F A,C,B,E,F A,C,B,E,F Diameter of flute roller (mm) 280 280 280 Grade of flute roller 48CrMo alloy steel 48CrMo alloy steel 48CrMo alloy steel Temperature requirements 140-160℃ 140-160℃ 140-160℃ Length range of cutting(mm) 400-2400 400-2400 400-2400 Product details

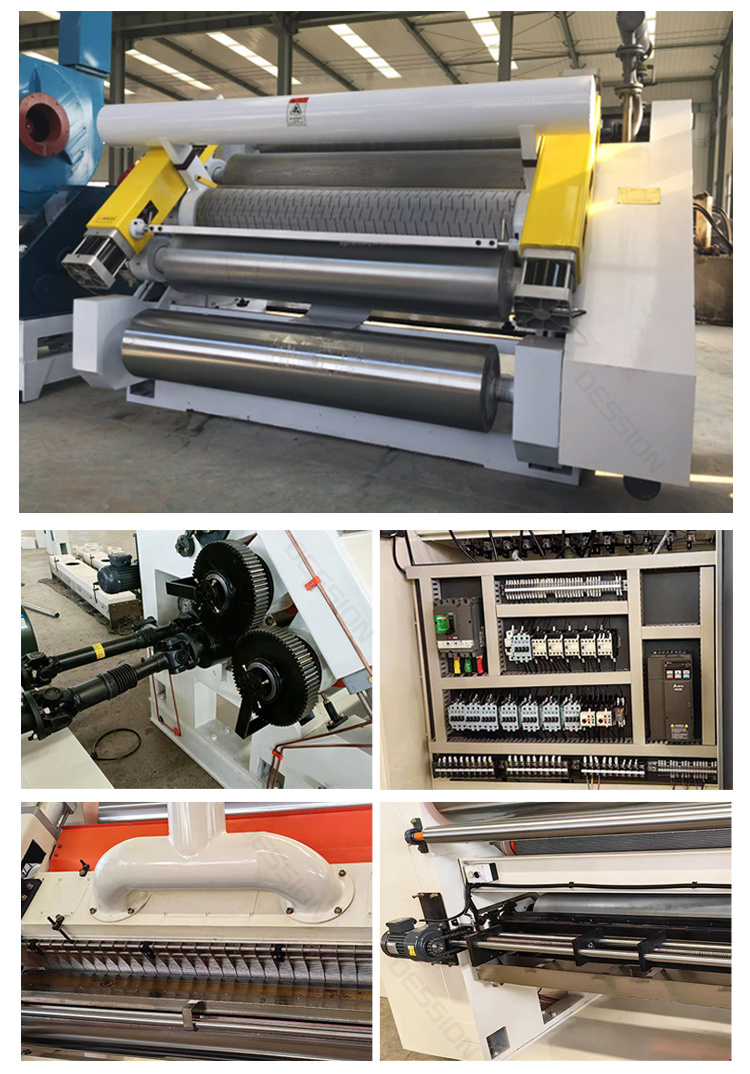

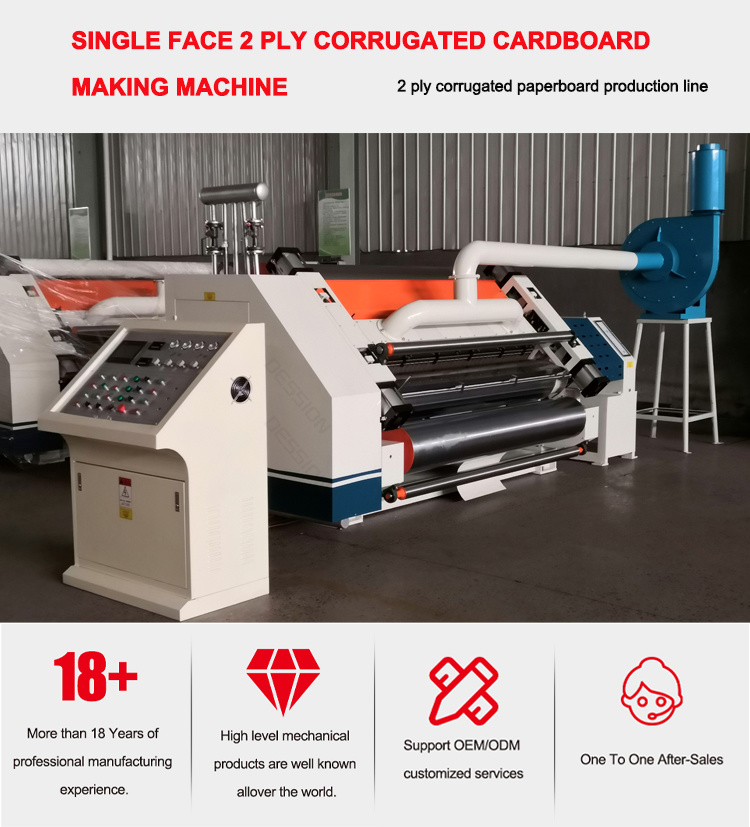

Single facer machine
1.Cardboard transmitting method adopts wind absorption, and keep flute profiles stable under the running condition of high speed.
2.The wind machine absorbs corrugated paper to corrugated rollers through vacuum box and form corrugated profile.
3.The width of wind groove of lower roller is not exceeding 2.5mm,and will less fringe marks of single corrugated paperboard.
4.Transmission part adopt chain transmission, away from vibration source, and make the transmission more steady and reliable, and easy to maintain.
5.The speed reducing box is oil-lubricating, close gear transmission, and will reduce machine vibration.
6.Glue unit adopts auto-supply glue circularly, pneumatically reset and has buffering effect.
7.Glue area will be electrically adjusted, glue unit can be running independently when machine steppes, and prevent glue running out.

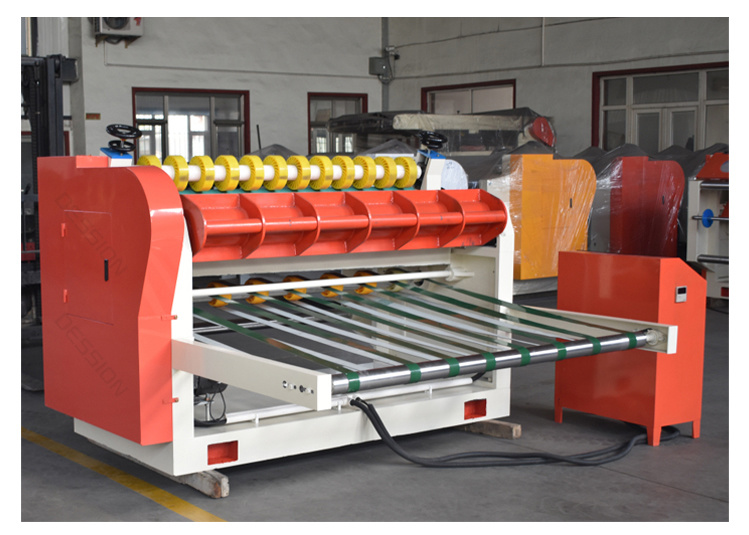

Sheet cut off machine
1.The single knife paper cutter is a device to realize the fixed length vertical and horizontal cutting of single-sided corrugated paper, and the use time of changing orders is short. Cutting has the characteristics of high precision and high speed.
2.The electrical components of this machine are imported Siemens Schneider brand.
3.The motor adopts variable frequency speed regulation and servo driver.
4.The paper cutter is made of high-quality front steel, which is refined by forging, cold treatment and other processes, sharp and durable.
5.The paper feeder is optional.
6.Single corrugated paper collector is the supporting equipment of single blade paper cutter.

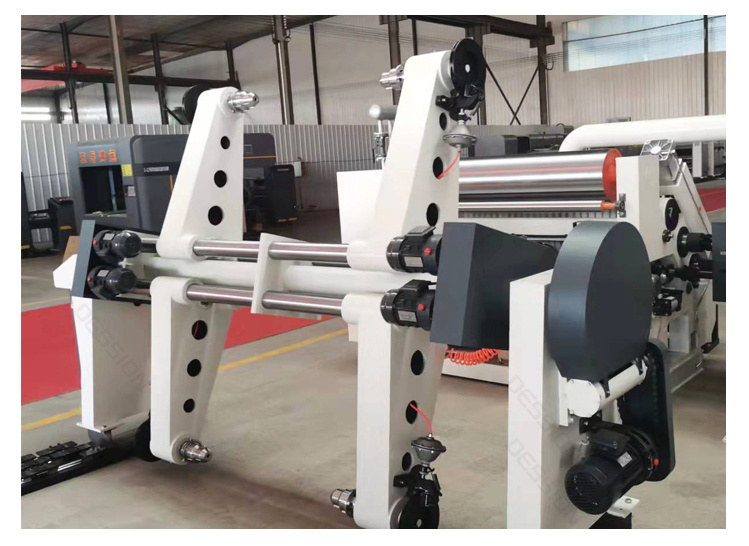

Electric mill roll stand
1.Working width: max1400-2000mm
2.Paper roll diameter: maximum ￠ minimum 1400mm ￠ 800mm
3.Maximum load on one side: 2500kg
4.Diameter of main shaft of rolling mill roll stand: ￠ 210mm
5.Total power: 5.0kw
6.Power of turnover motor: 1.5kwx1 sets; Cutting motor power: 0.. 37kwx4 sets
7.Characteristics:
In two working positions, two reels can be clamped at the same time, and the reel can be loaded or unloaded without stopping production. The pickup cylinder adopts cast iron curve structure, which is light, firm and stable.
The symmetrical structure can install two bundles of real paper at the same time, and the paper can be changed continuously.
Using electric drive, the real paper tape can be lowered, clamped, loosened and moved.
