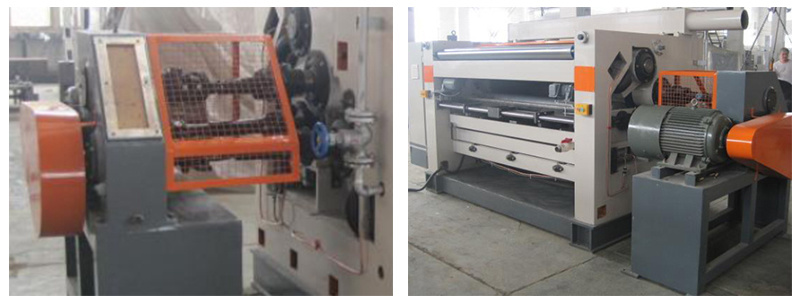

Cassette type single facer machine
If you need customized carton machinery, Contact US !
Products Category
- 产品描述
-
Structural feature
★ Adopt hood suction structure，matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.
★ High quality resin sand casting，wall thickness 200mm。Adopt independent gear box, Universal joint transmission structure.
★ Install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.
★ Glue roller unit structure with the overall relocation，Maintenance can sway the machine at the overall maintenance，improve the working efficiency。
★ The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry.★ Automatic circulation system for glue, two-cylinder pneumatic gluing device, with good cushioning effect.
★ Glue department using integrated slide structure，Glue roller surface after grinding engraved with 25 lines and pit-style textured hard chrome plating.
★ Corrugated roller adopt tungsten carbide dealing，diameter of the main corrugated roller¢ 320mm，Quenched→rough car→bore fine boring→shaft head shrunk-on→welding → tempering to stress→fine cars→coarse grinding→IF quenching→CNC grinding machine grinding→tungsten carbide dealing，hardness of surface is HRC58degrees.
★ Active force variable frequency motor drive, energy efficient, low failure rate.
★ Glue wide electric adjust to changes in the width of the paper used.
★ Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy.
★ Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery.
Technical parameters
1.effective width：1800mm
2.operate direction：left or right（Determined in accordance with the customer's facility)
3.design speed：150m/min
4.range of temperature：160—180℃
5.air source：0.4—0.9Mpa
6.steam pressure：0.8—1.3Mpa
7.equipment：Lmx3.5*Wmx1.7*Hmx2.2
8.single weight：MAX 7000Kg
