ML series creasing die cutting Machine is one kind of basic die-cutting machine for sampling and customizing products.

If you need customized carton machinery,  Contact US !

  • 产品描述
  • Product information

    Product feature

    1.ML series creasing die cutting Machine is one kind of basic die-cutting machine for sampling and customizing products. Changing the die cutting mould easily, operating easily, and the perfect protection system are the main reason which can win the market. It is also the perfect model for creasing, suitable for many kinds of different-weight cardboard.

    2.It is widely used in post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.

    3. High strength due to whole body casting with high quality material.

    4. Smooth running, high pressure, and low noise with a 2-step helical gear mechanism.

    5. Single plate electromagnetic clutch is sensitive and reliable.

    6.Operational altitude is reasonably arranged, moving-bed opens to its maximum.

    7. Electrical system is designed in conformity with IEC standards.

    8. Single, continuous operation and opening delay are available, the delay range is adjustable.

    9. Reliable safety system.

    10. Adjustable chases with a moveable bar.

    11.Concentrated automatic lubricating system.

    12.CE certificates

    Product parameter

    ModelMax.Rule Area (mm)Working speed(times/min)Max.Rule LengthMolor(kw)Weight(kg)Overall Dimensions(LxWxH)(mm)
    ML 750750x52028±2<15m2.220001260x1350x1280
    ML 930930x67023±2< 25m4.030001800x1600x1600
    ML 11001100x80020±2< 32m5.545001900x1800x1700
    ML 12001200x83020±2< 35m5.548001900x2000x1700
    ML 13001300x92018±2< 40m5/7.560002000x2400x1800
    ML 14001400x100018±2< 45m5/7.565002000x2450x1900
    ML 15001500x105018±2< 45m5/7.570002000x2500x1930
    ML 16001600x125016±2< 50m1111002170x2560x2130
    ML 18001800x130016±2(stroes/min)< 62m15135002240x2800x2230
    ML 20002000x140016±2< 80m15145002280x2900x2230

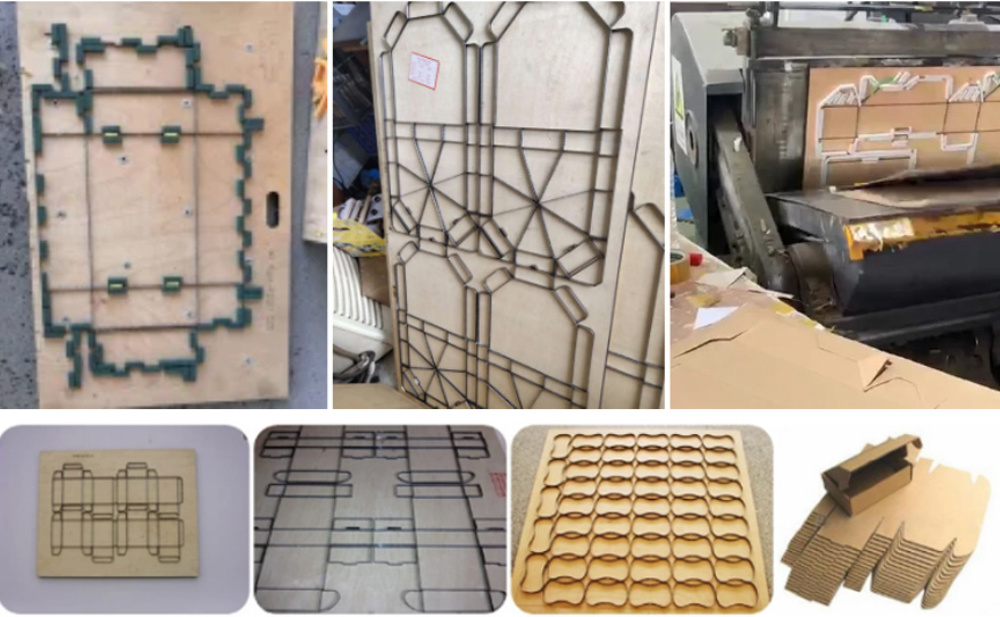

    Different die cutting mould
