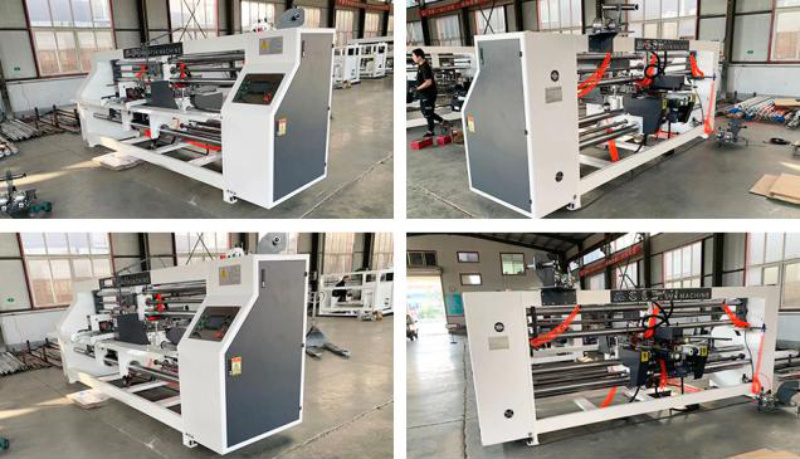

Semi automatic double pieces carton box stitcher machine
If you need customized carton machinery, Contact US !
Products Category
Tag list
- 产品描述
-
Product feature
1.Imported four servo control system.
2.A dual purpose, can nail single, double, irregular carton.
3.The dimensions are all electrically controlled.
4.Can nail: single nail, double nail, reinforcing nail a complete.
5.The paper feeding section counts automatically, and the finished products are sent out for binding.
6.Suitable for small and medium-sized cartons, binding fast and labor saving.
7.Adjust stitching distance, use computer to set automatic stitching distance.
8.It is suitable for small and medium-sized cartons with three or five layers, and can be nailed to cartons with bottom and no cover. Seven layers need to be customized (it needs to be explained when the seven layers of cartons and cartons with bottom and no cover are customized).
9.Nail distance (small - large) 30mm-120mm can be adjusted arbitrarily.
10.Mechanical speed: 500 nails/min.
Product parameter

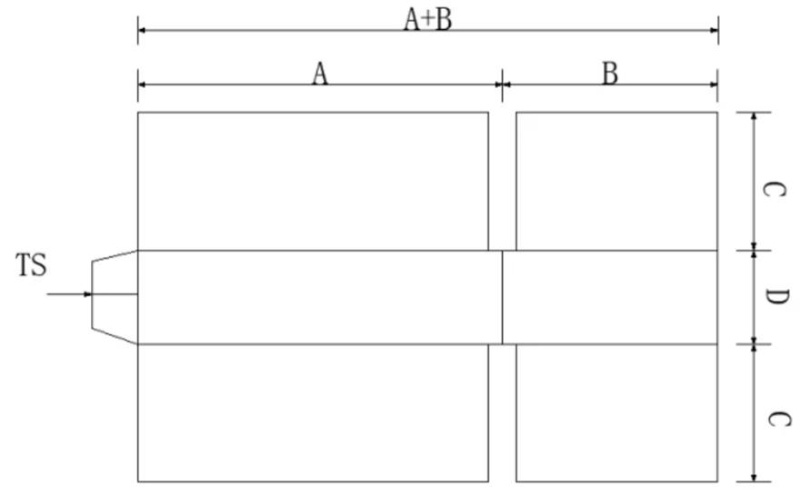

Models and parameters SDJ-2500 SDJ-3000 SDJ-3500 Maximum paperboard size (A+B)*2(mm) 4000 4800 6000 Minimum paperboard size (A+B)*2(mm) 1060 1060 1060 Maximum carton length A (mm) 1850 2350 2850 Minimum carton length A(mm) 350 350 350 Maximum carton width B (mm) 1000 1200 1500 Minimum carton width B (mm) 180 180 180 Maximum paperboard hight (C+D+C) (mm) 2500 2500 2500 Minimumpaperboard hight (C+D+C) (mm) 400 400 400 Maximum shake cover size C(mm) 560 560 560 Minimum rock cover size C(mm) 50 50 50 Maximum height D(mm) 2000 2000 2000 The minimum height D(mm) 150 150 150 Maximum width of the tongue (mm) TS 45 45 45 Nail distance (mm) 30-120 30-120 30-120 Nails NO. 1-99 1-99 1-99 Nailing speed nail/min 500 500 500 Nail wire type 17-18 17-18 17-18 Machine weight T 2.5 3 3.5 In the field of carton manufacturing, a high-performance carton stitching machine is the key to boosting production efficiency and product quality. Our Semi-automatic Double-Piece Carton Box Stitcher is precisely such a piece of professional, trustworthy equipment.
High-Efficiency Production, Time-Saving
This Semi-automatic Double-Piece Carton Box Stitcher features a semi-automatic operating mode, enabling it to complete the stitching of two-piece cartons quickly and accurately. Its advanced feeding system and stitching mechanism ensure that every stitching action is precise and error-free, thereby significantly enhancing production efficiency. Compared to traditional manual stitching methods, this machine can complete large-volume stitching tasks in a short period, saving valuable time and labor costs for businesses.
Stable and Reliable, Quality Assured
The equipment is constructed using high-quality materials and exquisite manufacturing craftsmanship, ensuring its stability and reliability during prolonged operation. Whether engaged in continuous work or high-intensity tasks, it consistently maintains outstanding performance. Furthermore, it is equipped with an advanced fault detection and protection system; should any anomalies occur, it promptly issues an alarm and automatically shuts down, effectively preventing equipment damage and product quality issues.
Simple Operation, Easy to Master
With the operator's user experience in mind, our carton stitching machine features a highly ergonomic design. Its user interface is clean and intuitive, and the function buttons are logically arranged, allowing even inexperienced operators to quickly master its operation. Additionally, the machine comes with a detailed user manual and instructional videos, providing users with comprehensive technical support.
Flexible Adjustment, Adapting to Diverse Needs
The Semi-automatic Double-Piece Carton Box Stitcher offers a high degree of flexibility, allowing for easy adjustments to accommodate varying carton sizes and stitching pitch requirements. It can effortlessly handle cartons of all sizes—from small to large. Moreover, it supports a selection of different staple types, thereby meeting the unique and personalized needs of diverse clients.
