Automatic corrugated carton rotary die cutting machine

Rotary die cutting machine used to make customized design corrugated carton box.

Email:

admin@wb-pack.com

WhatsApp:

+8618731741425

Inquire Now

Product feature

1.Rotary die cutting machine used to make customized design corrugated carton box .It can die cutting any shape corrugated box you want to make by change different cutting mould.

2.The die-cutting roller is made of high-quality steel with a wall thickness of 30mm, balance correction and hard chrome plating.

3.The wallboard wall thickness 50mm and is manufactured by a large machining center.

4.The soft roller automatic grinding mechanism improves the re-use rate of the rubber sleeve, can be ground 3-4 times.

5.Automatic line speed compensation ensures that the die-cut dimensions of each batch of cartons are exactly the same.

6.The paper feeding speed is 10,000 sheets per hour, and the cross cutting accuracy is ±0.75mm.

7.The phase is electrically adjusted by planetary gears, and the startup and shutdown are quickly adjusted.

8.Human-machine interface, full computer PLC precision control system.

9. The main machine adopts frequency conversion motor.

10.The front and rear control panels are concise and easy to operate.

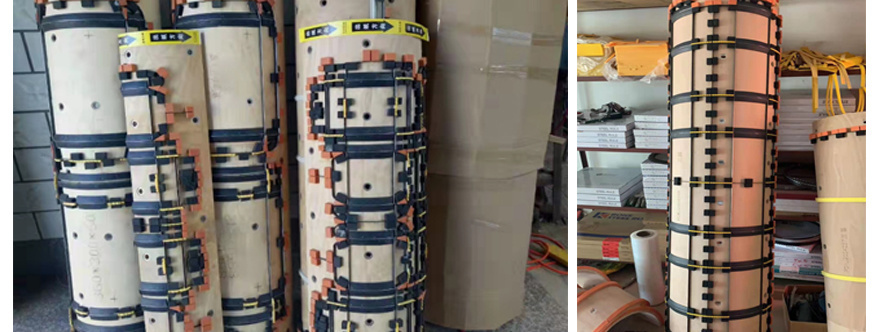

Different cutting mould

Product parameter

Model	unit	1200×2200/2400/2600	1400×/2400/2600/2800
Max.cardboard size	mm	1200×2000/2200/2400	1400×2200/2400/2600
Min.cardboard size	mm	340×600	420×600
Cardboard thickness	mm	2-8	2-8
Design speed	pcs/min	200	180
Economic speed	pcs/min	80-160	80-140
Max.die cutting size	mm	1200×1950/2150/2350	1400×2150/2350/2550
Die cutting precision	mm	±1	±1
Die cutting roller diameter	mm	φ360	φ432

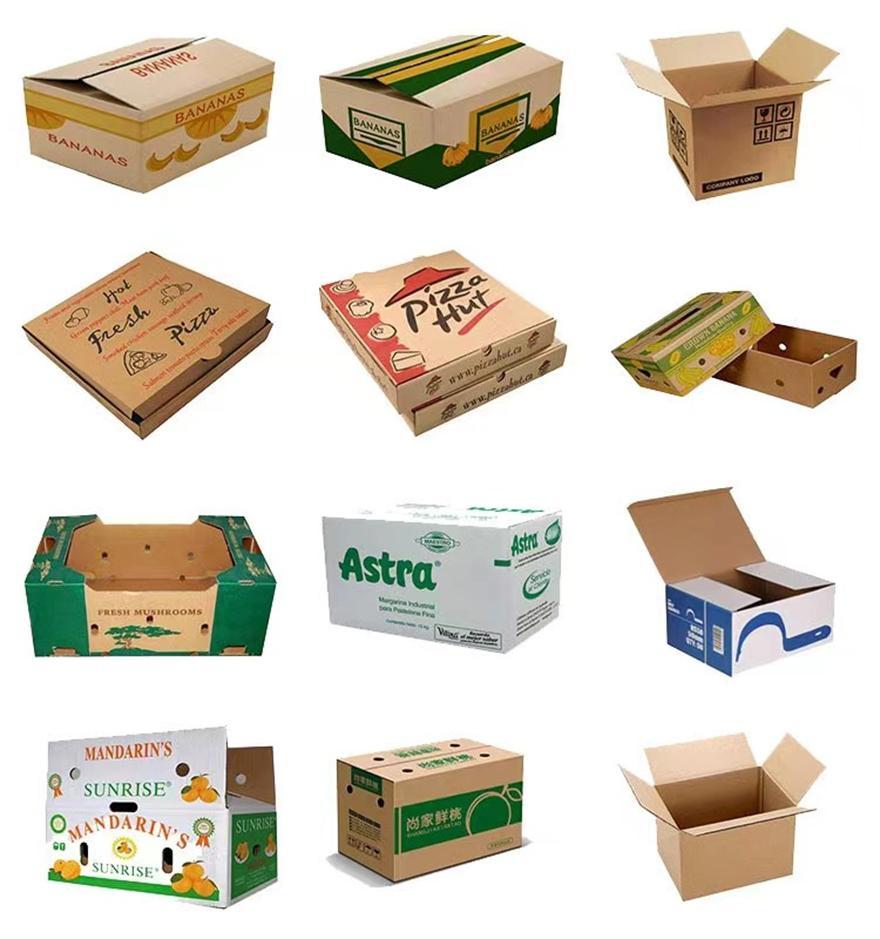

Finished product
