Automatic Flexo carton printing slotter die-cutting folder gluer machine
If you need customized carton machinery, Contact US !
Products Category
Tag list
- 产品描述
-
Pruduct description
Product parameter

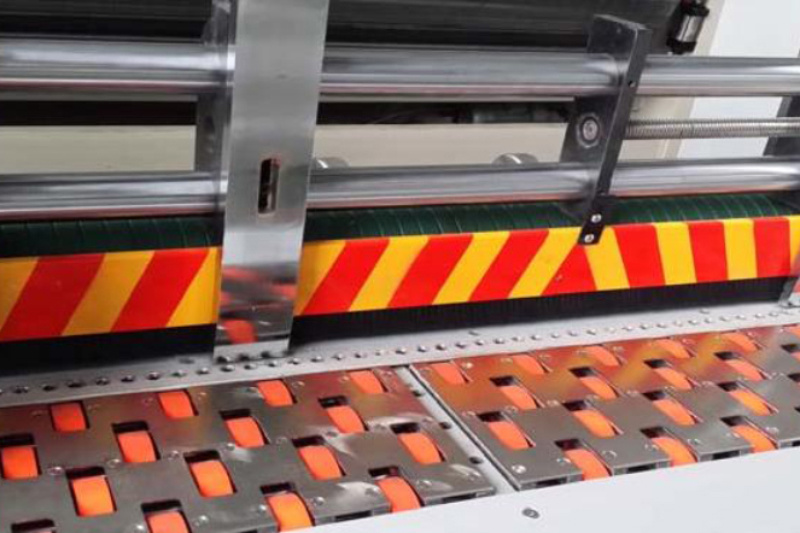

Lead edge feeder
Adopt the advance technology from Taiwan,the feed shaft material ball bearing steel.

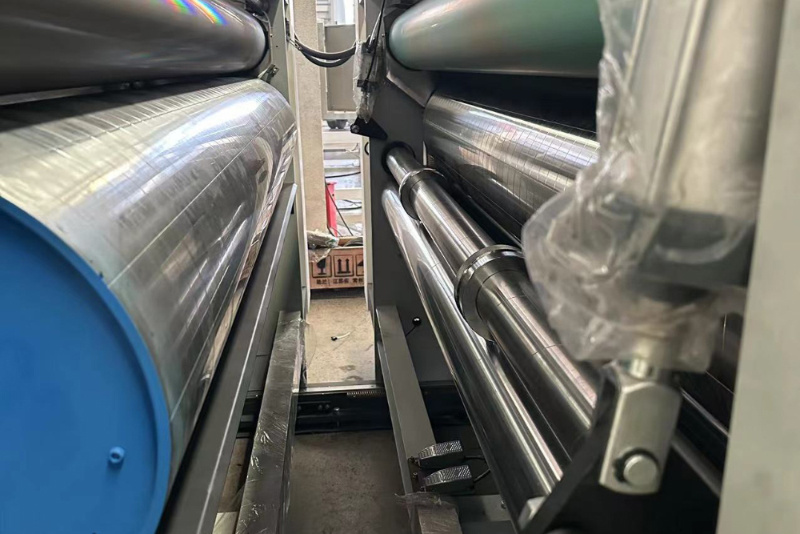

Print unit
The print roll ￠480mm(￠480mm include the print plate).High quality steel production, surface grinding, hard chromium plating, dynamic balance correction smooth operation, suitable for high-speed printing.The horizontal direction and the circular direction of the shaft body are engraved with the reference line, which is convenient to hang the plate to the plate.Ratchet fixed roll version of the shaft, with a hanging version of the groove, to quickly change the version.The printing plate can be corrected when the machine run or stops.

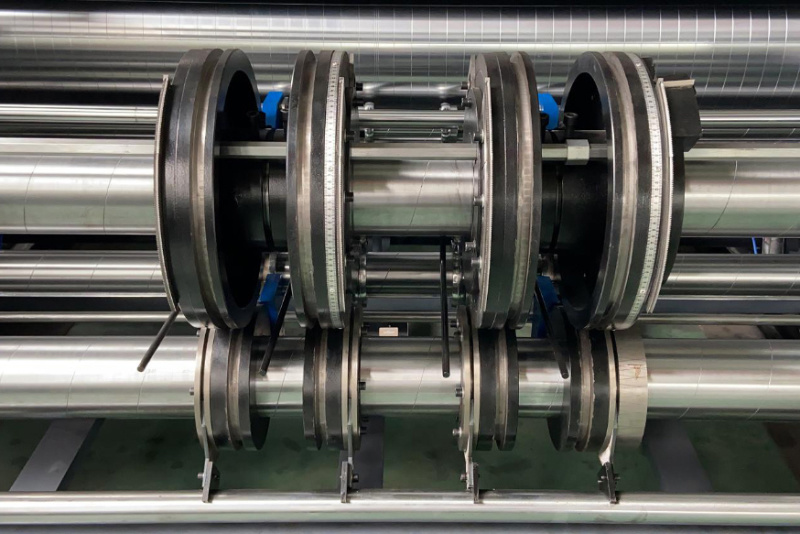

Slotter unit
Manually adjust the size between the shaft of each cutter seat, the height of the box is adjusted at the same time, which is convenient to operate. Equipped with emergency stop device to ensure safety, and equipped with the whole machine positive and negative inching.

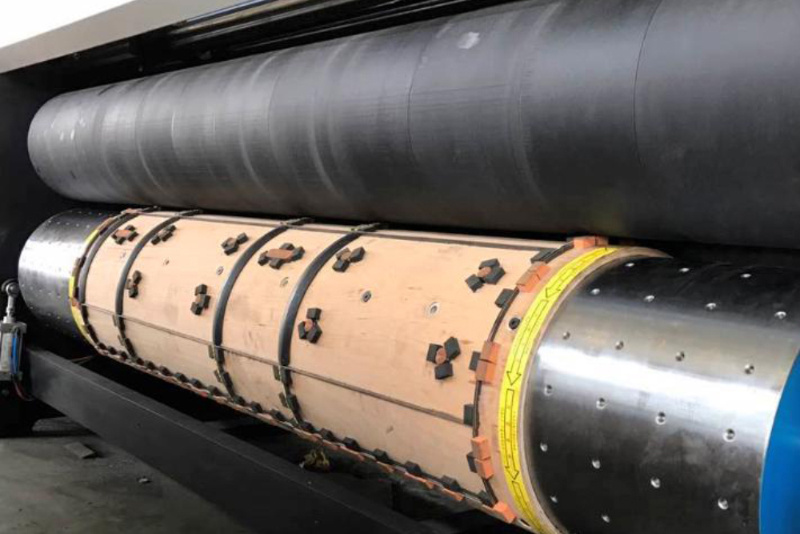

Die cutter unit
Outside diameter of the cutter roller ￠432mm (including the diameter of the cutter plate ￠300mm).Using high quality cast steel material, surface grinding, balance correction, all separate holes, increase running stability, shaft electroplating.
Parameter Unit Size Design speed m/min 200 Economical speed m/min 50-150 Maximum feeding size mm 1200×2400 Minimum feeding size mm 450×700 Paperboard thickness mm 2-10 Precision of glue mm ±2 Precision of glue fish tail mm ±2 Total power kw 35 Machine dimension mm 15000x4500x3200
Specification
Model E 1224 type printer slotter die cutter stacker Print color*width 4 color-2500mm【wall to wall】 Maximum speed(pcs/min) 120 Wall thickness(mm) 40 Gear thickness（mm） 50 Maximum feed board(mm) 1400 X 2400 Minimum feed board（mm） 250 X 650 Skip feed(mm) 1600 X 2400 Maximum print(mm) 1400 X 2200 Standard print plate thickness 3.2---7.2 Suitable thickness of board(mm) 3---12 Process of the board Print ±0.5/color
Die cutter ±1.5Production power(kw) 28 Total power(kw) 35 Sample display
Packaging and logistics
In the cardboard box manufacturing industry, our Automatic Flexo carton printing slotter die-cutting folder gluer machine is an advanced, multi-functional piece of equipment that provides an efficient and precise one-stop solution for cardboard box production.
High-Efficiency Printing, Exquisite Colors
Utilizing advanced flexographic printing technology, this machine achieves high-quality printing results. The printing unit is equipped with a high-precision anilox roller and doctor blade system, which precisely controls ink transfer, resulting in clear, vibrant colors and rich detail in the printed images. Simultaneously, the high printing speed meets the needs of large-scale production, significantly improving production efficiency.
Precise Slotting and Die-Cutting
It features precise slotting and die-cutting functions. The slotting blades are made of high-quality alloy steel and undergo special treatment, making them sharp and durable. They can precisely cut suitable slots according to different cardboard box specifications and requirements. The die-cutting unit uses advanced die-cutting technology to achieve die-cutting of various complex shapes with high precision and smooth cuts, ensuring the quality of the formed cardboard boxes.
Intelligent Folding and Gluing
The machine employs an intelligent control system for the folding and gluing of cartons, automatically completing both processes. It boasts high folding precision and strong gluing, adaptable to cartons of various sizes and shapes. Furthermore, it offers diverse gluing methods, allowing customers to choose the appropriate method based on their needs, such as glue gluing or tape gluing.
Easy Operation and Maintenance
The Automatic Flexo carton printing slotter die-cutting folder gluer machine features a user-friendly interface, making operation simple and easy to understand. Operators can master the machine after minimal training. The machine's rational structural design allows for easy disassembly and assembly of components, facilitating daily maintenance. In case of malfunctions, it can quickly locate and troubleshoot problems, minimizing downtime.
Stable Performance and High Reliability
We conduct rigorous quality inspections and performance tests on every component of the machine to ensure stable and reliable performance. During extended continuous production, it maintains efficient and stable operation, providing strong support for customer production.
Choosing our Automatic Flexo carton printing slotter die-cutting folder gluer machine means choosing an efficient, precise, and stable carton production solution to create greater value for your business.
