Product paramenters
This corrugated cardboard carton printing machine adopts vacuum adsorption help carrying paper ,PLC touch screen control system.Man-machine conversation,The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,The speed of glue rolls automatically giving.At the same time,it set up the computer program and glue case repaired equipment,feed acrruracy less than 0.5mm,it has many good characteristics such as slicing high precision,high speed,operating easy and so on.
MODEL 920 1224 1426 1628 MAX speed(pcs/min) 300 260 200 160 the max cardboard size(mm) 2200x900 2500x1200 2700x1400 2900x1600 the min cardboard size (mm) 300x500 350x600 400x600 450x650 the max printing size(mm) 2100x900 2400x1200 2600x1400 2800x1600 the max die cutting (mm) 2100x900 2400x1200 2600x1400 2800x1600 printing roller diameter(mm) 300 405 480 530 min slot distance(mm) positive blade 130x130x130x130 140x140x140x140 150x150x150x150 150x150x150x150 min slot distance (mm) negative blade 230x65x230x65 240x70x240x70 240x75x240x75 240x75x240x75 max slot depth 230 300 360 400 printing precision(mm) ±0.3 ±0.3 ±0.3 ±0.3 slotting precision(mm) ±1 ±1 ±1 ±1 die cutting precision(mm) ±1 ±1 ±1 ±1 Product details

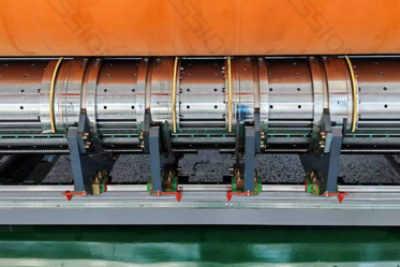

Automatic Feeder Unit
1.Leading edge paper feeding adopt Vacuum adsorption,frequency conversion control air volume,increase paperboard conveying stability and accuracy.Double-row paper feed roller to improve the accuracy of paper feeding.
2.The main engine adopts frequency conversion control,start and operation smoothly,saving energy can reach 30%.

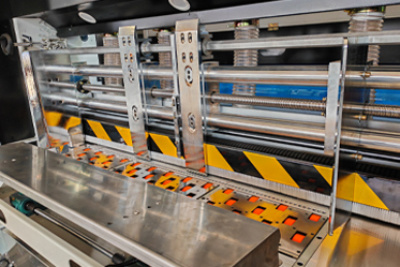

Printing unit
1. Printing phase and axial adjustment:The phase adopt planetary gear type structure,PLC touch screen control and electric digital 360° adjustment.
2. Remove the plate and reset function,computer memory printing position,automatic reset after removing the plate.

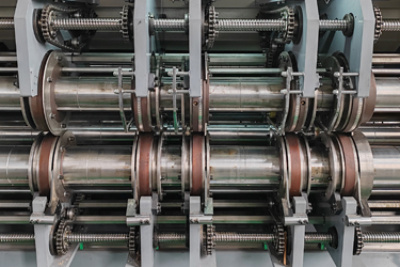

Slotting unit
1. Adopt 4-axis double crimping line for better forming.
2. Fully automatic model, input the size on the display screen, intelligently adjust the size, and quickly change orders.
3. Intelligent phase adjustment.

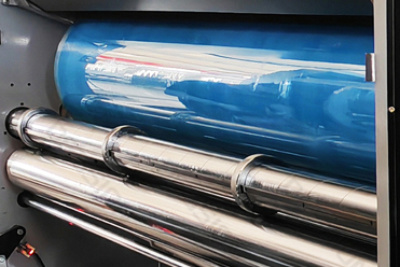

Die cutting unit
1.Rubber gasket roller:centrifugal casting steel cylinder,computer dynamic balancing correction,surface grinding,hard chrome plating.
2.Rubber roller cutting repair mechanism,rubber gasket can be used repeatedly,thereby,it can greatly save the cost.
