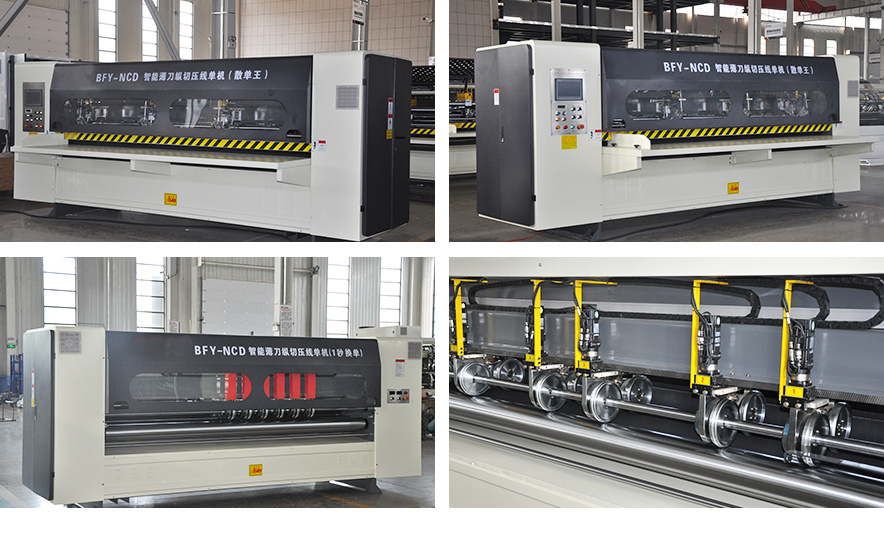

Thin blade slitter scroer machine

This machine is on the basis of the original models to be improved, and the machine in the process of operation, more simple and quick, repair rate is low, the efficiency is greatly increased.

Email:

admin@wb-pack.com

WhatsApp:

+8618731741425

Inquire Now

Product feature

This machine is on the basis of the original models to be improved, and the machine in the process of operation, more simple and quick, repair rate is low, the efficiency is greatly increased.

1. Cutting blade USES the thin blade technology, tungsten alloy materials, service life is long, thin blade thickness is only 1.2 mm, cutting out the cardboard is smooth, no burr, no crushed phenomenon, and the straightness is good, the quality of the cardboard to get great improvement.

2. The machine adopts double rubber roller (strong rubber ) guiding paper, bottom blades synchronous moving, rolling line at five points of design, good straightness, reasonable structure, convenient operation, high efficiency.

3. The grinding blade function, using the manual and automatic two ways to sharpen, convenient, quick, can work while sharpening, thus greatly improve the work efficiency.

4. Drive way, the main drive is chain transmission, low noise, low maintenance rate, thin blade drive adopt imported synchronous belt transmission, low noise, long service life.

5. Electrical components, the main motor adopts the electromagnetic adjustable speed motor, smooth operation, the revolution is adjustable, components adopt schneider, Siemens and other brands.

Product parameter

Model		2000	2300	2300	3000
Machine dimension(mm)		26007501400	29007501400	30007501400	36007501400
Motor power		3	4	4	5.5 kw
Max slitting width(mm)	Inverse	1900	2200	2300	2930
Max slitting width(mm)	Positive blade	1800	2100	2200	2900
Min slitting width(mm)	Inverse	305	305	305	305
Min slitting width(mm)	Positive blade	140	140	140	140
Min slitting length(mm)		435	435	435	435
Min scoring width(mm)	Positive scoring	30	30	30	30
Min scoring width(mm)	Inverse scoring	80	80	80	80
Scoring height(mm)		0-10	0-10		0-10
Blade(mm)		φ200×122×1.2
Slitting scoring composed type		Three blade Four scoring/Four blades Six scoring/Five blade Eight scoring
