Semi-auto and automatic PP strapping machine
If you need customized carton machinery, Contact US !
Products Category
Tag list
- 产品描述
-

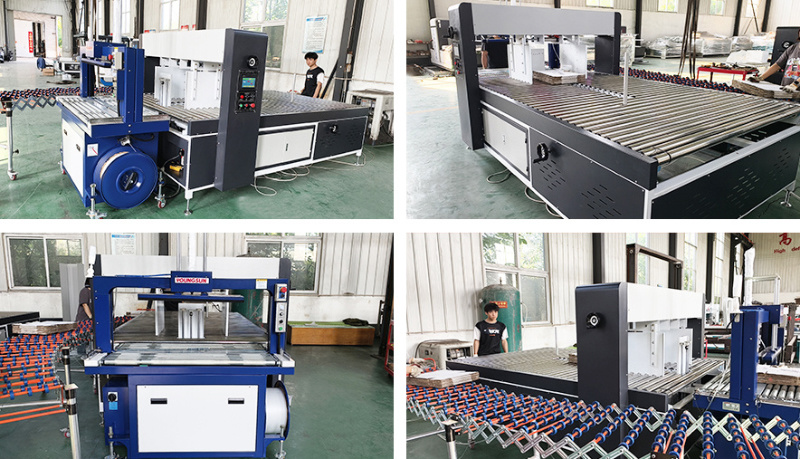

Automatic strapping machine is mainly used in automatic sticky box.
Machine/output after automatic strapping automatic order box machine, the machine by turning, taken together, pressurized banding.Using PP strapping, strong, do not rebound, paper edge damage.The whole process automatically, without human intervention, can save a lot of artificial cost.Such as color, paper products factory packaging equipment for increasing the income of enterprises and reducing Consumption.
Machine parameter
Model VT-5-9 Size 1580mm*600mm*1900mm Packing dimensions 1650mm*700mm*2000mm Worktable height 850mm Load-bearing capacity 80kg Net Weight 365kg Packing tape
SpecificationBand width 5mm ,6mm ,7mm , 8mm ,9mm Tape thickness 0.5-0.6mm Tape disc Ring paper core diameter 200 mm-210 mm Outer diameter of bell ring 400-450mm Ring width 175-190mm Speed > =55 Pack / min Strapping specifications Min:W80mmXH60mm Maximum size is the in-frame specification Adhesion method Thermal melting method Bonding mode Bottom bonding, bonding surface 90%, bonding position deviation 2mm Strapping tightness 0-45kg Power 600W ,10A Power Supply 1P ,220V ,50Hz Gaspressure 0.4-0.6MPa Rated power 0.7kw Rated Current 4A Rated Voltage 220v 1P/N/PE 50Hz Rated Pressure 6kg/cm Working noise ≤75dB(A) Adjustable options Frame specification,band width Max strapping goods size L(according to machine )*W1000*H500mm Application
