Sheet cutter for 2ply

Single cutter can do single corrugated cardboard vertically and horizontally cutting.

Email:

admin@wb-pack.com

WhatsApp:

+8618731741425

Inquire Now

Characteristics

1. Single cutter can do single corrugated cardboard vertically and horizontally cutting. It has change order fast and high cutting precision, working speed fast etc .make little waster, when changed the order .It suit for the top grade color printing machine.

2. This machine adopt PLC touch screen to design.

3. Through it operator can know all the production status. Adopt variable frequency motor to adjust the speed. Servo control make the cutting length more exactly, making the cutting precision perfectly. (error±1.5mm) mechanical behavior will more line.

Detailed parameter

Parameter	Unit	Model
Max. cutting width	mm	1300	1700	2000
Cutting length area	mm	300-9999	300-9999	300-9999
Thickness of cutting	mm	1-2	1-2	1-2
Power capacity	kw	6	6	6
Control voltage	VAC	220	220	220
Dynamic voltage	VAC	380	380	380
Error	Mm	±1.5	±1.5	±1.5
Working speed	m/min	80	80	80

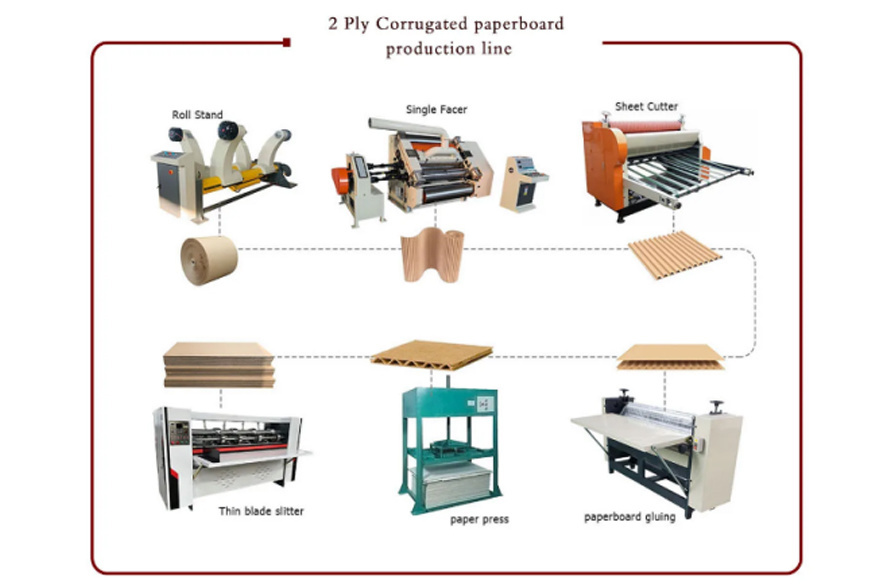

2 Ply Corrugated paperboardproduction line

Sheet cutter for 2ply

Single cutter can do single corrugated cardboard vertically and horizontally cutting.

Email:

admin@wb-pack.com

WhatsApp:

+8618731741425

Inquire Now
